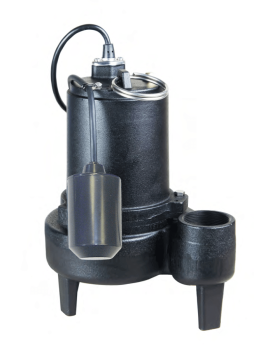

MDI Sewage Pump - 1/2 HP - 115 VAC - 10 foot cord - 108 GPM - 18 foot Head w/ Float Switch
SKU: MD500T-G
MDI 1/2 HP submersible sewage pump is engineered to handle the tough demanding tasks for waste-water and effluent waste transfer. This product is ideal for use in residential, commercial, industrial, and agricultural applications. Designed for basement sewage systems, mound systems, effluent/sewer, laundry facilities, grain storage and high capacity de-watering needs where wastewater must be moved upward from a collection area to sewer lines, septic lines or drainage areas.
- Model: MD500T-G
- 1/2 HP
- 7.4 Amps
- 115 VAC 60 Hz Single Phase
- 10 foot Cord
- GF2OW10F1 Float Switch
- FEATURES/BENEFITS
- 3 Year Warranty
- Rugged cast iron construction maximizes pump life
- Non-clogging vortex impeller designed to handle 2” solids
- Piggyback Tethered float switch for automatic operation
- Energy-efficient, PSC motor with automatic reset thermal overload protection
- Ball bearings for quiet operation
- Oil-filled motor for maximum heat dissipation and permanent lubrication
- Graphite and ceramic mechanical sealed motor for long life
- 2” female NPT discharge with 10’ power cord for easy installation
Pump Manual
Sell Sheet
Manufacturer: MDI Sewage Products
Weight: 39 lb
Stock Quantity: Out of Stock
Currently unavailable
We don't know when or if this item will be back in stock.
Please use the "Request More Info" form
- ADDITIONAL INFORMATION
- Horsepower 1/2 Horsepower
- Motor Cover: Cast Iron
- Volute: Cast Iron
- RPM: 3450
- Volt: 115 AC, 60Hz
- Full Load Amps: 7.4
- Type: Permanent Split Capacitor (PSC)
- Coolant: Oil
- Insulation: Class B
- Motor Duty: Continuous
- Discharge Size: 2 Inches
- Liquid Temperature Max: 140 Degrees F
- Hardware: Stainless Steel
- Impeller Type: Non-Clog Vortex
- Impeller Material: Impact Resistant Thermoplastic
- Switch: Piggyback Tethered Mechanical Float
- Switch On / Off Level: 6 Inch Max. Pumping Range, Adjustable
- Maximum Flow: 108 GPM
