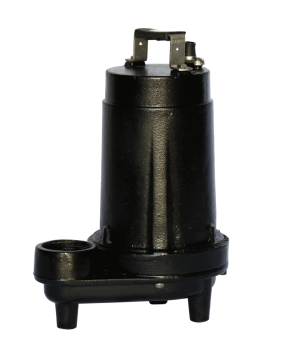

Champion Effluent Pump - 1/2 HP 115 VAC - 20 foot cord - 64 GPM - 48 foot Head
SKU: CPE5-12
Dewatering, Elevator Pits, Septic Systems, Residential & Commercial Developments, STEP Systems.
Model: CPE5-12
- 1/2 HP
- 8.5 Amps
- 115 VAC 60 Hz Single Phase
- 20 foot Cord
FEATURES/BENEFITS
- High Efficient Motor With Upper & Lower Ball Bearings/ Runs Cooler & Last Longer
- Vortex Impeller/ Helps Prevent Clogging
- Inboard Seal-Rotating Components Of Seal Are In The Motor Housing, Lubricated By The Motor Oil/ Seal Will Last Longer If Pump Runs Dry, Hair And Debris Cannot Wrap Around Seal Components
- Secondary Exclusion Seal/ Keeps Debris From Entering Seal Cavity
- Sealed Entry-Replaceable Power Cord/ Easy To Replace In The Field, Prevents Water From Entering The Motor Housing Through A Cut Power 20' Cord
- Piggy-Back Switch Design/Defective Switches Can Be Diagnosed By Phone; Pump Can Be Operated Manually by Overriding The Switch
- Every Pump Is Tested In Water/Ensures That The Pump Meets Head & Flow Requirements
Spec Sheet
Manufacturer: Champion Pump
Weight: 36 lb
Stock Quantity: In Stock
Delivery: Ships in 2-3 Business Days
Please use the "Request More Info" form
Here is a list of competitors equivalent pumps.
Barnes
STEP512SS (105045)
Goulds
PE51M
EP0511 (3871)
EP0511F
WE0511H (3885)
WE0511HH
Hydromatic
OSP50M1
SPD50MH1
SHEF45M1
SHEF50M1
Little Giant
14EH-CIM (514220)
Sta-Rite
EC650120M
EC750120M
APPLICATIONS
- Dewatering, Elevator Pits, Septic Systems, Residential & Commercial Developments, STEP System
- Discharge 2" NPT. Vertical
- Solids Handling 3/4"
- Liquid Temperature 140 Degrees F. (Intermittent)
- Motor Housing Cast Iron
- Volute Cast Iron
- Seal Plate Cast Iron
- Impeller Cast Iron/Vortex
- Shaft Stainless Steel
- Shaft Seal Inboard Mechanical With Secondary Exclusion Seal
Carbon- Rotating Face
Ceramic- Stationary Face
Buna-N-Elastomer
300 Series Stainless Steel-Hardware
- Bearing (Upper & Lower) Single Row, Ball, Oil Lubricated
- Hardware 300 Series Stainless Steel
- Square Rings Buna-N
- Cord (UL/CUL) Listed 16 AWG, Type SJTW 20' Length
- Cord Entry Compression Grommet- Outer Jacket Seal, Quick Disconnect Pin Terminals
- Motor (Single Phase) 1/2 HP, 3450 RPM, 60Hz NEMA L Includes Overload Protection In The Motor.
Oil Filled, Class B
Permanent Split Capacitor
- Weight 35lbs
